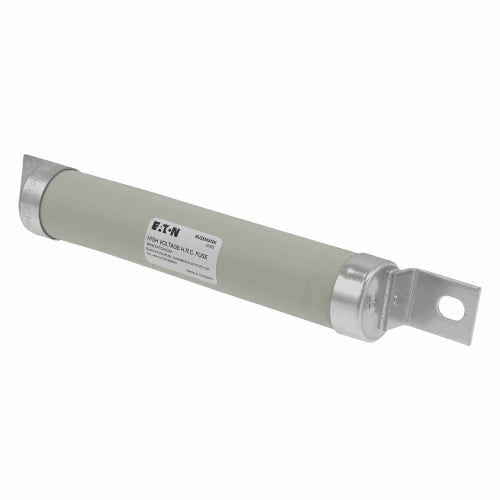

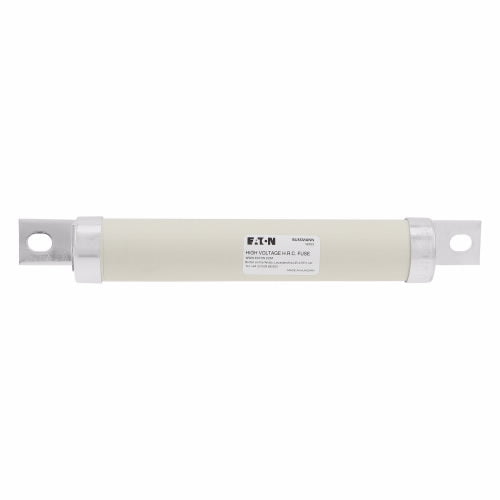

WJON6 Motor Fuses (3.6kV Tag Type '6', BS2692)

Description: Provide short circuit protection in motor circuits to both the motor starter and cables from the starter to the motor.

Voltage: 3.6kV

Amperages: 5A, 10A, 16A, 20A, 25A, 31.5A, 40A, 50A

Distance between fixing centers: 235mm

Overall length: 257mm

Overall diameter: 36mm (WJON6 Range)

Datasheet available on p. 26

BS2692 Motor Fuse Type '6' 3.6kV Fuse
